Just jotting this down for my own reference.

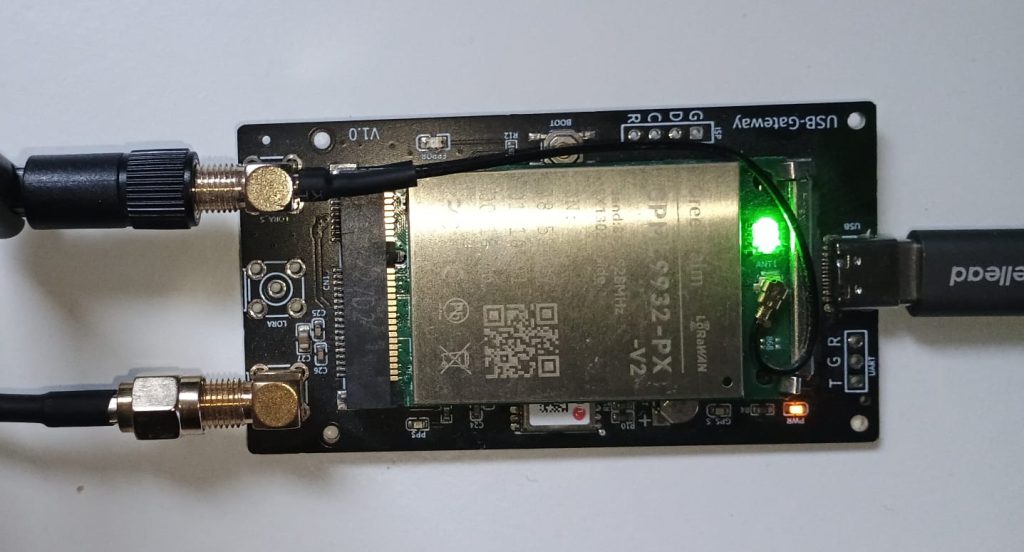

USB gateway for TTN SX1302
USB LoraWan Gateway with GPS/Support Class B/SX1302 8ch Concentrator for Linux

I keep forgetting how to set up this little piece of hardware in a Docker container using Portainer, so here’s a quick guide for future reference:

Plug USB to the host computer.

Creates 2 “ports”:
1. /dev/ttyACM1
2. /dev/ttyACM0

Install a new container in portainer. Settings:

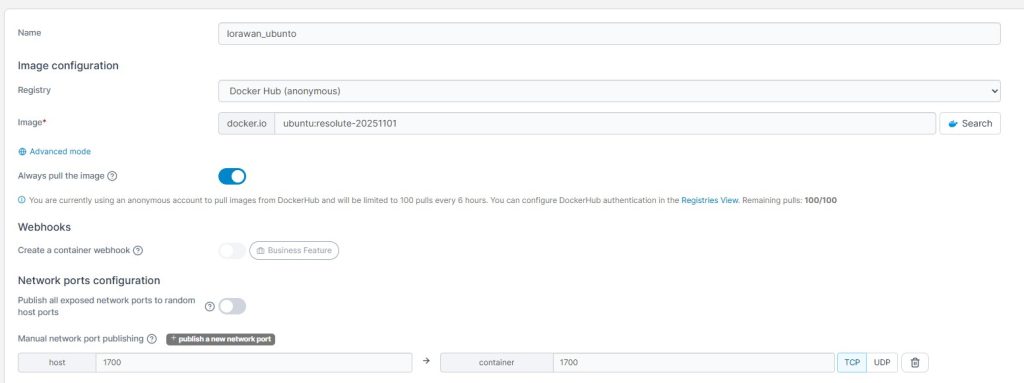

Portainer basic settings for the new container Image and Port
Portainer basic settings for the new container Image and Port

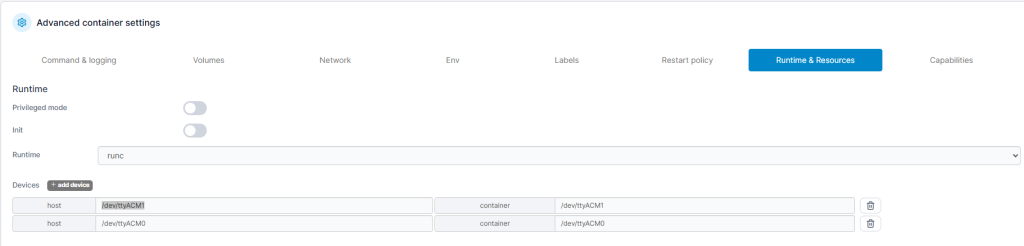

Advanced container settings Runtime & Resources in Portainer
Advanced container settings Runtime & Resources in Portainer

From the host get into the container

docker exec -it lorawan_ubunto /bin/bash

Do an update and upgrade as root

apt-get update
apt-get upgrade

Install Git along with some other necessary packages.

apt-get install git
apt-get install minicom
apt-get install make
apt-get install libc6-dev
apt-get install vim

Go to the /home directory and retrieve the package forwarder.

cd /home
git clone https://github.com/Lora-net/sx1302_hal

Compile the source

cd /home/sx1302_hal
make

Some error messages might come up. Seems to be not important

cd home/sx1302_hal/packet_forwarder
./lora_pkt_fwd -c global_conf.json.sx1250.EU868.USB

If everything works as expected, a lot of information will appear on the screen. All we need from that is the device ID.

concentrator EUI
concentrator EUI

Edit the global_conf.json.sx1250.EU686.USB file in /home/sx1302_hal/packet_forwarder

    "gateway_conf": {
        "gateway_ID": "XXXXXXXXX", /*The concentrator EUI*/
        /* change with default server address/ports */
        "server_address": "eu1.cloud.thethings.network", /*The server address */
        "serv_port_up": 1700, /*The port*/
        "serv_port_down": 1700,  /*The port*/
        /* adjust the following parameters for your network */
        "keepalive_interval": 10,
        "stat_interval": 30,
        "push_timeout_ms": 100,
        /* forward only valid packets */
        "forward_crc_valid": true,
        "forward_crc_error": false,
        "forward_crc_disabled": false,
        /* GPS configuration */
        "gps_tty_path": "/dev/ttyACM1", /* The gps device */
        /* GPS reference coordinates */
        "ref_latitude": 0.0,
        "ref_longitude": 0.0,
        "ref_altitude": 0,
        /* Beaconing parameters */
        "beacon_period": 0,
        "beacon_freq_hz": 869525000,
        "beacon_datarate": 9,
        "beacon_bw_hz": 125000,
        "beacon_power": 14,
        "beacon_infodesc": 0
    },

No need to create the gateway. Already there. https://eu1.cloud.thethings.network/console/gateways
